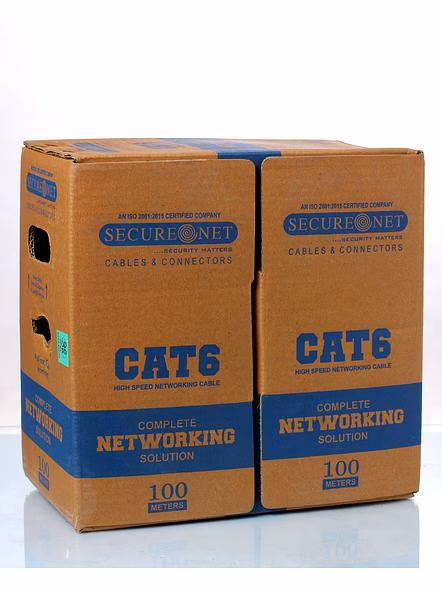

S-100 (CAT 6e)
Inclusive of all taxes
You Save: 174.95. Discount: 5%
-
Product is not available
SEPECIFICATIONS

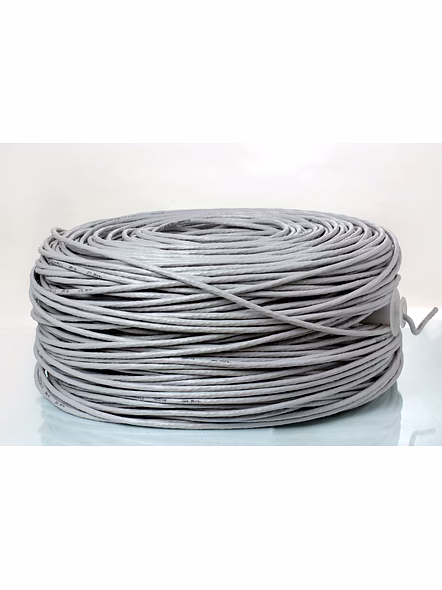

4 Pairs Unshielded Twist Pair (UTP) Cable
Conductor Metal: Solid Bare Copper
Color Code: Grey
Conductor Diameter: 23AWG
Insulation Diameter: 0.970mm Nominal
Insulation Material: PE
Jacket Material: PVC
Cable Diameter: 6mm Nominal
PE Central Cross Separator
TECHNICAL DETAILS
Mutual Capacitance: 5.6nf/100m Nominal
Characteristic Impedance: 100+-15%
Nominal Velocity of Propagation: 69%
Characteristic Impedance: 100 + 15
Conductor Resistance: <9.38/100m
Mutual Capacitance: <5.6nF/100
Resistance Unbalance: 5% Max
Capacitance Unbalance: 330pF/100m
Bending Radius: < 4 x Cable Diameter at – 20° +- 1°C
Delay Skew: <45nS
Pulling Force: 11.5KG
Temperature Range: -20°C to 70°C
-
